PCBA Quality Assurance

PCBA Testing and Inspection

Ensuring excellence in every circuit board through advanced testing and meticulous inspection techniques.

At JHYPCB, we understand that the quality of your printed circuit board assemblies (PCBAs) can make or break your electronic products. That’s why we’ve developed a comprehensive testing and inspection process that ensures every PCBA leaving our facility meets the highest standards of quality and reliability.

Why PCBA Testing Matters

In today’s fast-paced electronics market, there’s no room for error. A single faulty component or poor connection can lead to:

Product malfunctions
Reduced lifespan
Safety hazards
Costly recalls

Our rigorous PCBA testing and inspection protocols are designed to catch these issues before they become problems for you or your customers.

Our Commitment to Quality

JHYPCB’s dedication to quality goes beyond mere slogans. We’ve invested in:

State-of-the-art testing equipment
Highly trained quality control specialists
Continuous improvement of our processes

This commitment ensures that when you choose JHYPCB, you’re choosing a partner who takes your success as seriously as you do.

Pre-Assembly Inspection

At JHYPCB, we believe that quality begins before the first component is placed. Our pre-assembly inspection process is designed to catch potential issues early, saving time and resources while ensuring the highest quality end product.

Component Verification

Before assembly begins, we meticulously verify all components:

Visual Inspection: Each component is examined for physical defects or damage.
Specification Check: We ensure all components match the bill of materials (BOM) exactly.
Moisture Sensitivity: Components are checked and stored according to their moisture sensitivity level (MSL) to prevent soldering issues.

PCB Bare Board Inspection

The foundation of any great PCBA is a high-quality PCB. Our bare board inspection includes:

Dimensional Checks: We verify board thickness, hole sizes, and overall dimensions.
Surface Quality: Inspecting for scratches, dents, or other imperfections that could affect assembly.
Electrical Testing: Continuity and isolation tests to ensure the bare board meets design specifications.

By rigorously inspecting components and bare boards before assembly, we significantly reduce the risk of defects in the final product. This proactive approach is just the first step in our comprehensive quality assurance process.

In-Process PCBA Testing

At JHYPCB, we believe in catching potential issues as early as possible. Our in-process testing ensures that each step of the assembly process meets our rigorous quality standards.

Automated Optical Inspection (AOI)

AOI systems use high-resolution cameras and advanced image processing to detect defects:

Identifies component presence, position, and polarity
Checks solder joint quality
Detects bridges, insufficient solder, and other defects

X-ray Inspection

For components that can’t be visually inspected, we use X-ray technology:

Inspects ball grid arrays (BGAs) and other hidden solder joints
Detects voids, insufficient solder, and misalignments
Ensures quality of multi-layer boards

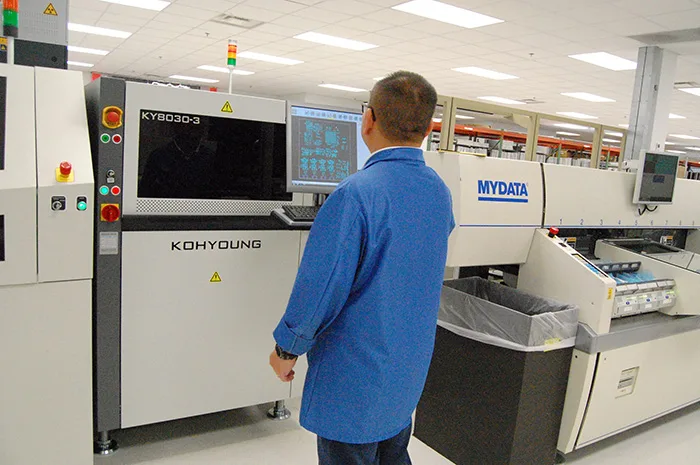

Solder Paste Inspection (SPI)

Before component placement, we verify solder paste application:

Checks solder paste volume and alignment
Ensures consistent solder paste height
Prevents solder-related defects before they occur

Post-Assembly PCBA Testing

After assembly, we conduct comprehensive tests to ensure each PCBA functions as intended.

In-Circuit Testing (ICT)

ICT uses a bed-of-nails fixture to access test points on the PCBA:

Tests for shorts, opens, resistance, capacitance, and inductance
Verifies correct component placement and values
Provides rapid, automated testing for high-volume production

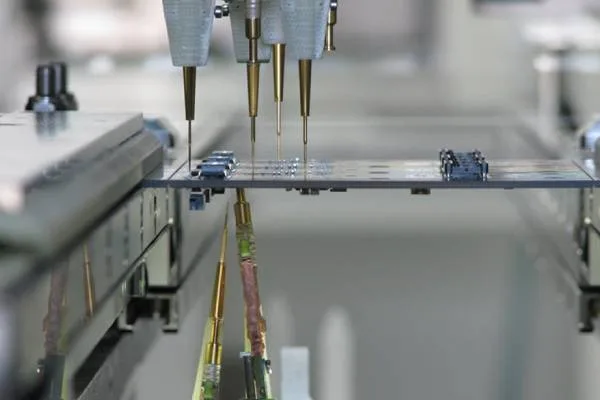

Flying Probe Testing

For prototypes or low-volume productions, we use flying probe testing:

Flexible testing without the need for custom fixtures
Ideal for quick-turn and prototype PCBAs
Performs electrical tests similar to ICT

Functional Testing

We simulate real-world conditions to ensure your PCBA performs as expected:

Custom test fixtures mimic the final product environment
Verifies all PCBA functions meet design specifications
Identifies any performance issues before final delivery

By combining these in-process and post-assembly testing methods, JHYPCB ensures that every PCBA we produce meets the highest standards of quality and reliability. Our comprehensive approach minimizes defects, reduces rework, and ensures your satisfaction with the final product.

Final PCBA Inspection

At JHYPCB, we believe that a thorough final inspection is crucial to ensuring the quality and reliability of every PCBA we produce.

Visual Inspection

Our trained inspectors perform a detailed visual examination:

Check for proper component placement and orientation
Inspect solder joints for quality and consistency
Verify absence of foreign objects or debris

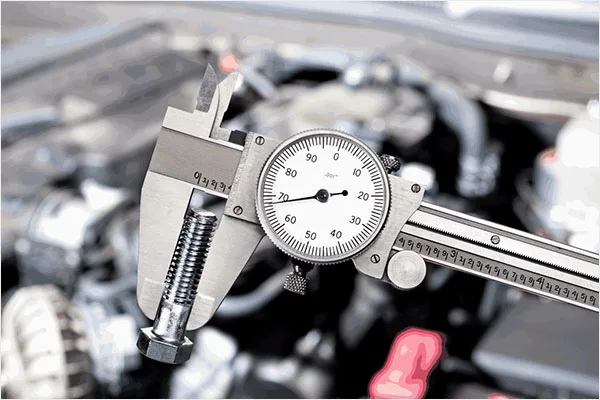

Dimensional Inspection

We ensure that each PCBA meets exact specifications:

Measure board dimensions and hole locations
Verify component height and clearances
Ensure compliance with design requirements

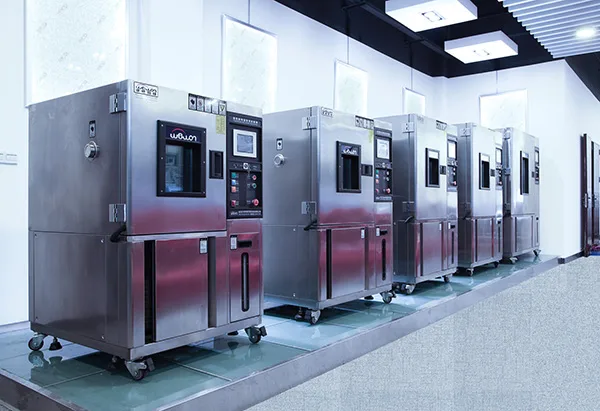

Environmental Stress Screening (ESS)

To simulate real-world conditions and identify potential weaknesses:

Subject PCBAs to temperature cycling
Perform vibration testing
Expose boards to humidity variations

Reliability Testing

JHYPCB goes beyond basic functionality testing to ensure long-term reliability of your PCBAs.

Thermal Cycling

We test how PCBAs perform under temperature extremes:

Expose boards to rapid temperature changes
Identify potential issues with solder joints or components
Ensure reliability in varying environmental conditions

Vibration Testing

To simulate transportation and operational stresses:

Subject PCBAs to various vibration frequencies and amplitudes
Detect loose components or weak solder joints
Ensure durability in high-vibration environments

Humidity Testing

We test how PCBAs perform in high-humidity conditions:

Expose boards to controlled humidity levels
Check for corrosion, delamination, or other moisture-related issues
Ensure reliability in diverse climates

Quality Assurance Protocols

Our commitment to quality extends beyond testing to encompass comprehensive quality assurance measures.

Statistical Process Control (SPC)

We use data-driven methods to maintain and improve quality:

Monitor key process parameters
Identify and address process variations early
Continuously optimize our manufacturing processes

Defect Analysis and Corrective Actions

When issues are identified, we take swift and thorough action:

Conduct root cause analysis for any defects
Implement corrective measures to prevent recurrence
Document and share learnings across our organization

Continuous Improvement Initiatives

We’re always looking for ways to enhance our processes:

Regular staff training and skill development
Investment in latest testing and inspection technologies
Ongoing review and refinement of our quality procedures

At JHYPCB, our comprehensive testing, inspection, and quality assurance protocols ensure that every PCBA we produce meets the highest standards of quality and reliability. We’re committed to delivering products that not only meet but exceed your expectations.

Advanced Testing Technologies

At JHYPCB, we continuously invest in cutting-edge technologies to enhance our testing capabilities and ensure the highest quality PCBAs.

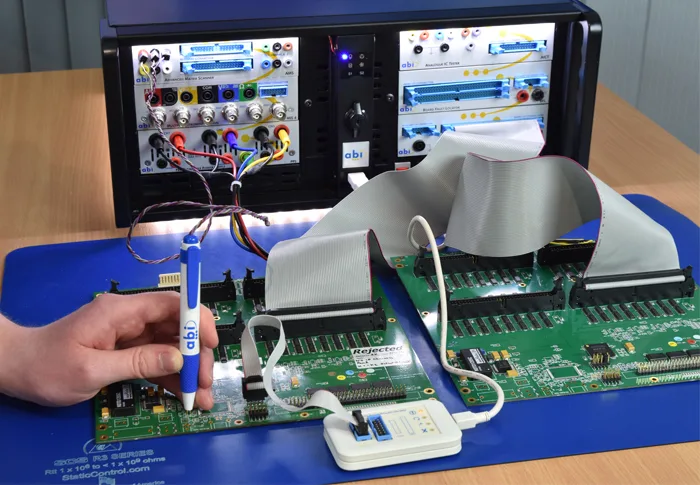

Boundary Scan Testing (JTAG)

For complex, high-density boards:

Tests interconnections without physical access
Ideal for BGAs and other hard-to-reach components
Reduces the need for extensive bed-of-nails fixtures

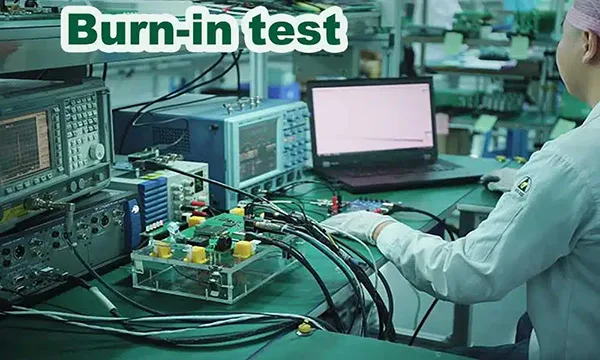

Burn-in Testing

To identify early-life failures:

Operates PCBAs under stress conditions for extended periods
Helps eliminate weak components before shipment
Ensures long-term reliability in the field

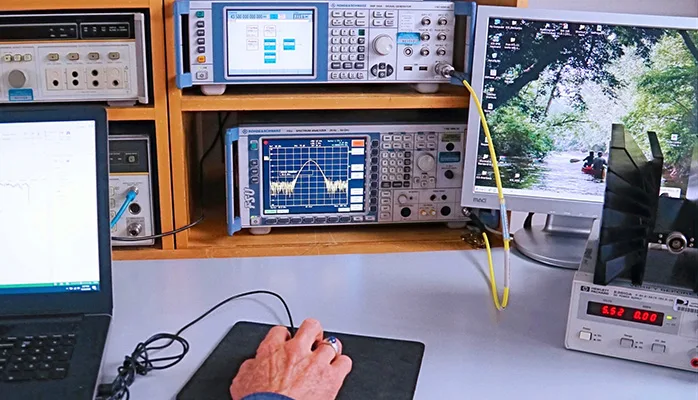

EMC/EMI Testing

To ensure electromagnetic compatibility:

Tests for electromagnetic emissions
Verifies susceptibility to electromagnetic interference
Helps meet regulatory standards and product specifications

JHYPCB's Dedication to Quality

Our comprehensive PCBA testing and inspection process reflects our unwavering commitment to quality:

State-of-the-art equipment and methodologies
Highly trained and experienced staff
Continuous investment in advanced technologies

Benefits of Our Approach

By choosing JHYPCB, you gain:

Confidence in the reliability of your PCBAs
Reduced risk of field failures and recalls
Cost savings through early defect detection
A partner committed to your product’s success

At JHYPCB, we don’t just manufacture PCBAs – we ensure that every board meets the highest standards of quality and reliability. Our rigorous testing and inspection processes, combined with our commitment to innovation and customer satisfaction, make us the ideal partner for all your PCBA needs.
